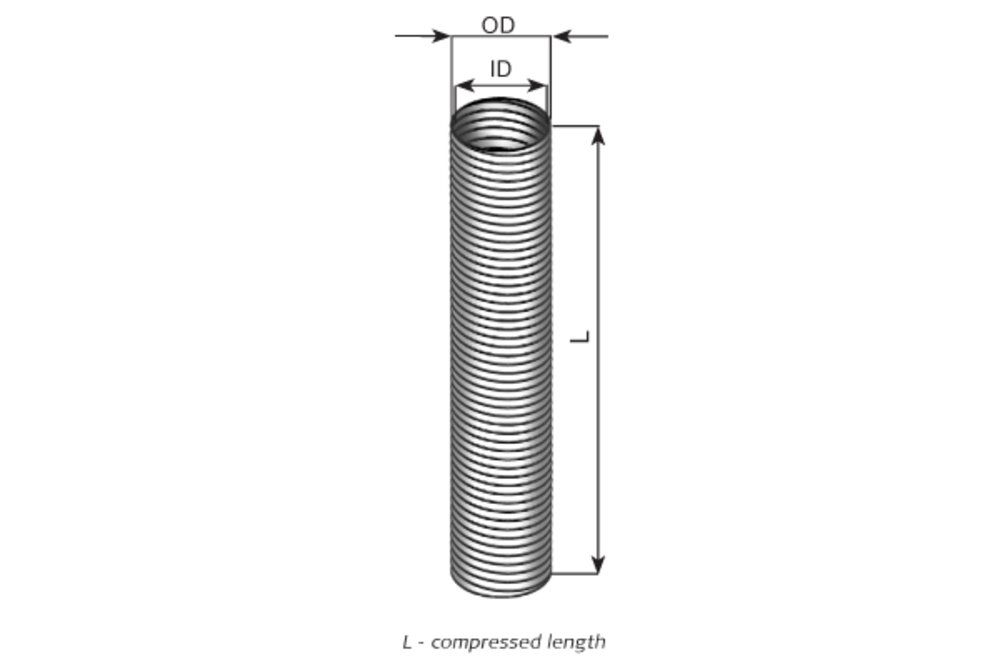

Flex Pipe, Renault, D2S+, Ø=102.7 / L=258, SS
D2S+ Round Double Interlocked Profile
Leakage Rate: 9.0 L min-1dm-2 @0.30bar
Flexibility/Force: 60-250 N (±23mm from mid position)
Axial Extension: > = 30% (> = 90mm)
Maximum Torsion: 5˚ (@ compressed length of 300mm)
| Dinex no. | 64220 |
| OE no. | 5010213556, 5010269522 |
| Emission norm | Euro 1 |
| EAN | 5700760067620 |
| Tariff number | 8708923500 |
| Outer diameter [mm] | 107.00 |
| Inner diameter [mm] | 103.00 |
| Material | Stainless Steel |
| Net weight [kg] | 0.88 |
| Height [mm] | 106.00 |
| Width [mm] | 106.00 |
| Length [mm] | 270.00 |
| Exhaust emission norm | Euro 1 |
| Weight [LBS] | 1.94 |
| Height [inch] | 4.17 |
| Length [in] | 10.63 |
| Width [inch] | 4.17 |
