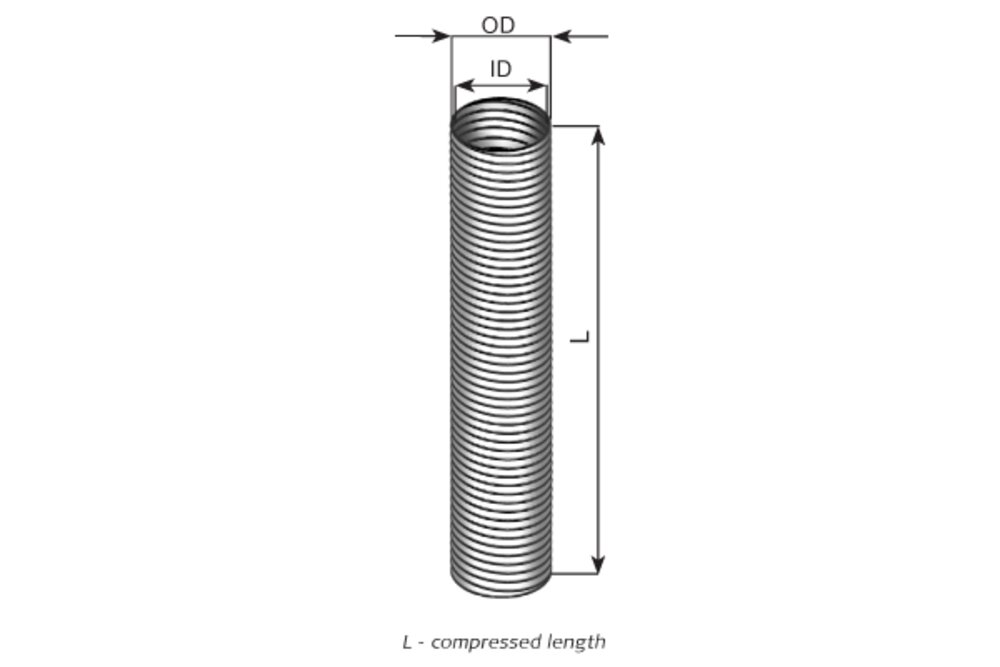

Flex Pipe, MAN, D2S+,OD/ID=113.4/110 L=315, SS
D2S+ Round Double Interlocked Profile
Leakage Rate: 9.0 L min-1dm-2 @0.30bar
Flexibility/Force: 60-250 N (±23mm from mid position)
Axial Extension: > = 30% (> = 90mm)
Maximum Torsion: 5˚ (@ compressed length of 300mm)
Max temperature 550 degrees
1 Year Warranty
| Dinex no. | 49133 |
| OE no. | 81152100054 |
| Emission norm | Euro 2 |
| Alternative version | 48241 |
| EAN | 5700760042801 |
| Tariff number | 8307100000 |
| Material | Stainless Steel |
| Outer diameter [mm] | 113.40 |
| Inner diameter [mm] | 110.00 |
| Net weight [kg] | 0.66 |
| Exhaust emission norm | Euro 2 |
| Inner diameter [inch] | 4 1/3 |
| Outer diameter [inch] | 4 1/2 |
| Height [mm] | 113.40 |
| Width [mm] | 113.40 |
| Length [mm] | 363.00 |
| Weight [LBS] | 1.46 |
| Height [inch] | 4.46 |
| Length [in] | 14.29 |
| Width [inch] | 4.46 |
