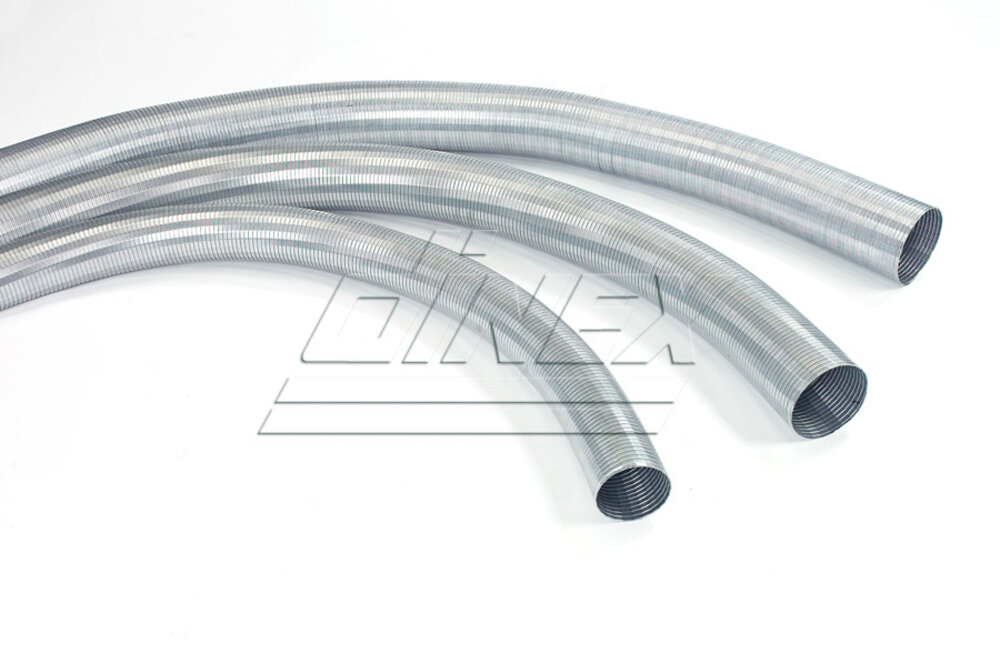

Flex Pipe, D2S+, Ø=102.7 / L=1000, ZINC
D2S+ Round Double Interlocked Profile
Leakage Rate: 9.0 L min-1dm-2 @0.30bar
Flexibility/Force: 60-250 N (±23mm from mid position)
Axial Extension: > = 30% (> = 90mm)
Maximum Torsion: 5˚ (@ compressed length of 300mm)
| Dinex no. | 94102 |
| EAN | 5700760128147 |
| Inner diameter [mm] | 102.70 |
| Outer diameter [mm] | 106.70 |
| Net weight [kg] | 3.17 |
| Compressed length | 1000 |
| Extended Length | 1300 |
| Installation Length | 1150 |
| Material | Zinc Coated |
