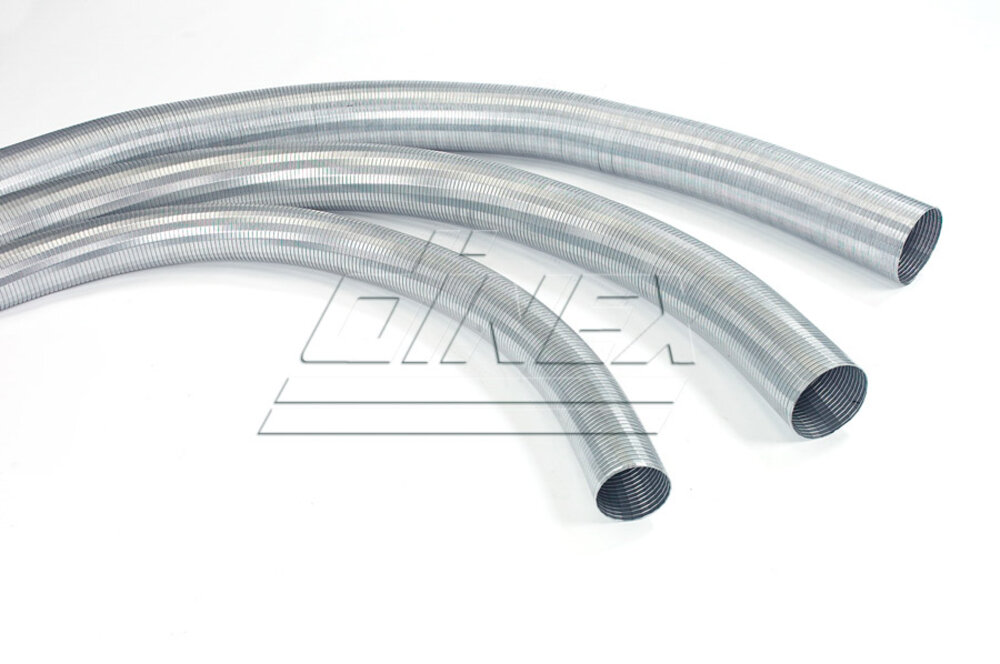

Flex Pipe, D2S+, Ø=128.3 / L=1000, ZINC

D2S Round Double Interlocked Profile


Leakage Rate: 15.0 L min-1dm-2 @0.15bar

Flexibility/Force: 60-300 N (± 15mm from mid position)

Axial Extension : > = 20% (>= 60mm)

Maximum Torsion: 2˚ (@ compressed length of 300mm)

Dinex no.94127
EAN5700760128222

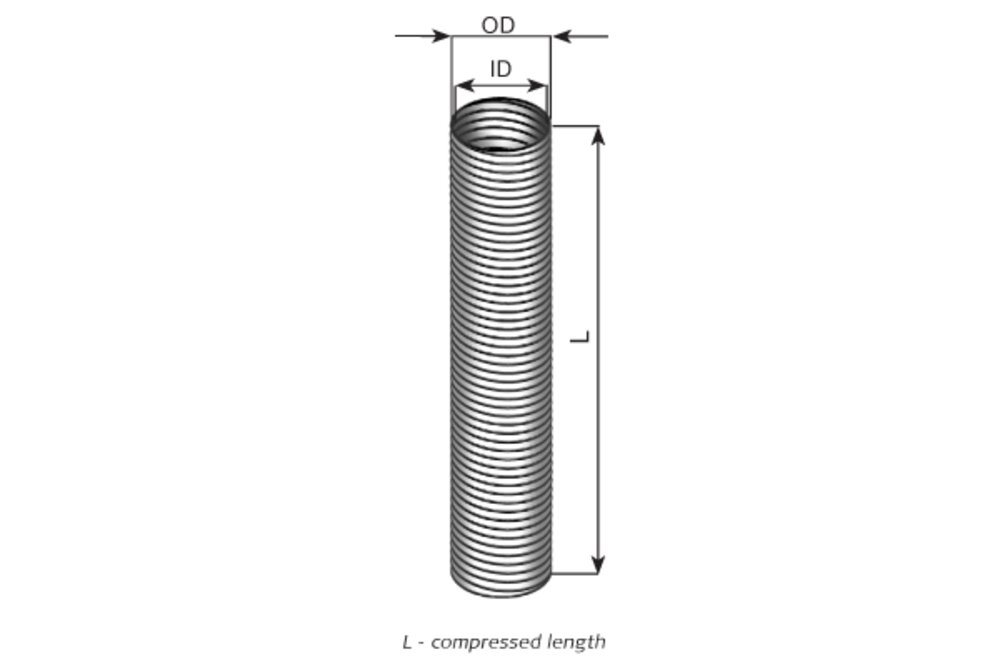

Outer diameter [mm]131.70
Inner diameter [mm]128.30
Diameter [mm]1000.00
Length [mm]1000.00
Height [mm]132.00
Width [mm]132.00
Net weight [kg]3.74
Compressed length1000
Extended Length1300
Installation Length1150
MaterialZinc Coated
