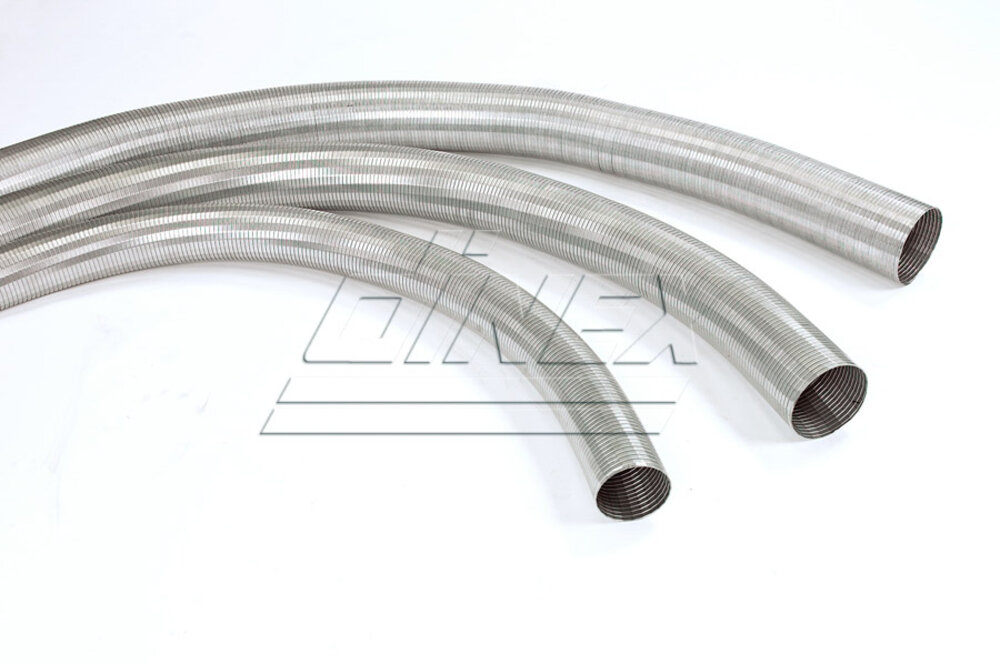

Flex Pipe, D2S+, Ø=140 / L=2000, SS

D2S+ Round Double Interlocked Profile


Leakage Rate: 9.0 L min-1dm-2 @0.30bar

Flexibility/Force: 60-250 N (±23mm from mid position)

Axial Extension: > = 30% (> = 90mm)

Maximum Torsion: 5˚ (@ compressed length of 300mm)

Dinex no.95240
EAN5700760129748
Length [mm]2000.00
MaterialStainless Steel
Net weight [kg]8.90
Diameter [mm]140.00

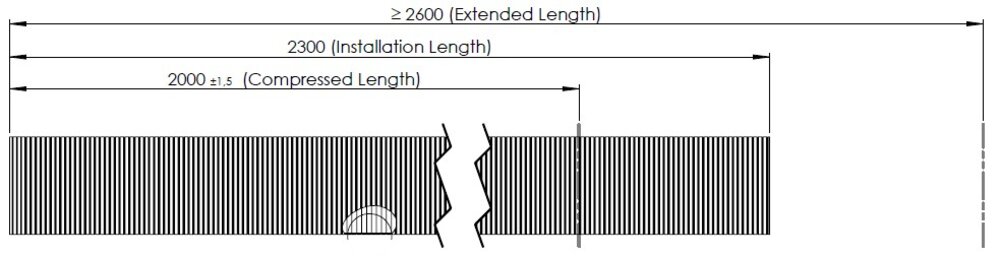

Extended Length2600
Inner diameter [mm]140.00
Installation Length2300
Outer diameter [mm]144.00
Height [mm]145.00
Width [mm]145.00
