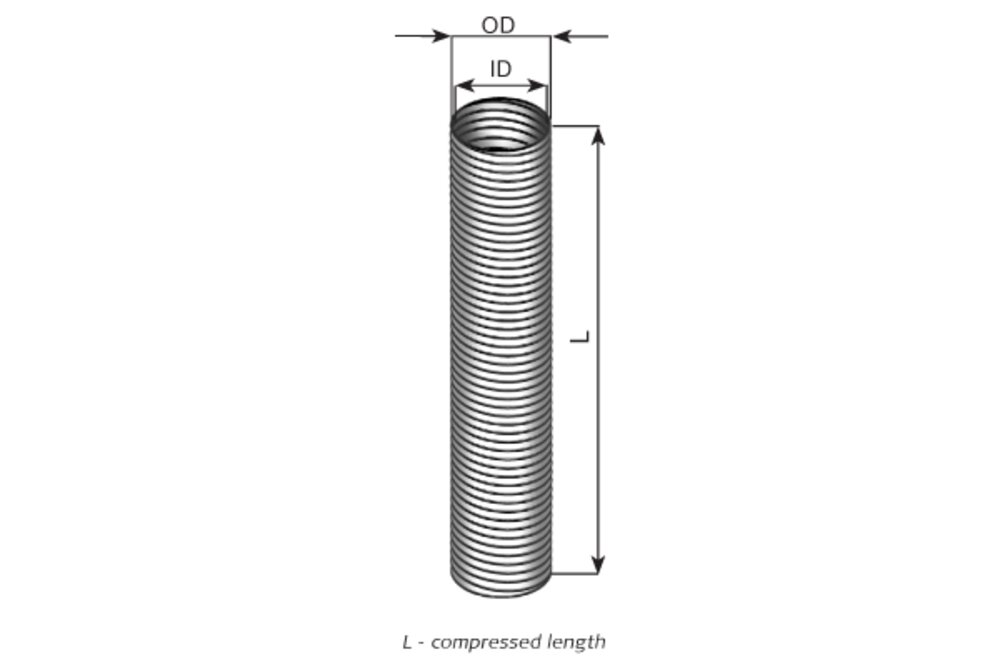

Flex Pipe, D2S+, Ø=153.8 / L=1000, SS
D2S+ Round Double Interlocked Profile
Leakage Rate: 9.0 L min-1dm-2 @0.30bar
Flexibility/Force: 60-250 N (±23mm from mid position)
Axial Extension: > = 30% (> = 90mm)
Maximum Torsion: 5˚ (@ compressed length of 300mm)
| Dinex no. | 94152 |
| EAN | 5700760128321 |
| Length [mm] | 1000.00 |
| Inner diameter [mm] | 153.80 |
| Outer diameter [mm] | 157.20 |
| Height [mm] | 160.00 |
| Width [mm] | 160.00 |
| Net weight [kg] | 5.06 |
| Compressed length | 1000 |
| Extended Length | 1300 |
| Installation Length | 1150 |
| Material | Stainless Steel |
