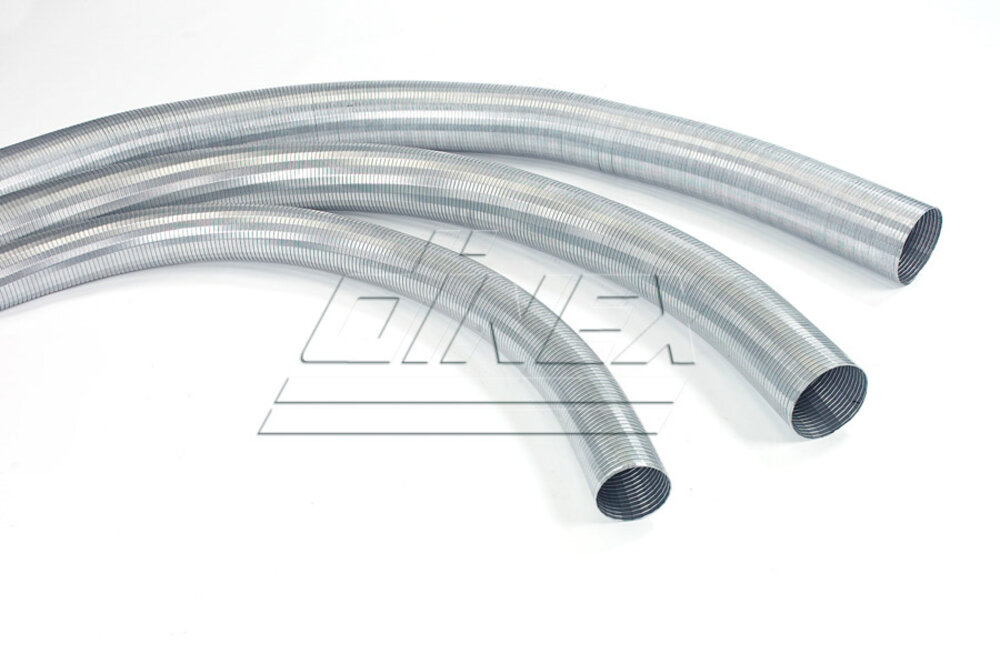

Flex Pipe,D2S, Ø=48 / L=1000, ZINC

D2S Round Double Interlocked Profile


Leakage Rate: 15.0 L min-1dm-2 @0.15bar

Flexibility/Force: 60-300 N (± 15mm from mid position)

Axial Extension : > = 20% (>= 60mm)

Maximum Torsion: 2˚ (@ compressed length of 300mm)

Dinex no.94148
EAN5700760128307
Length [mm]1000.00
Inner diameter [mm]48.00
Outer diameter [mm]52.00
Height [mm]50.00
Width [mm]50.00
Net weight [kg]2.00

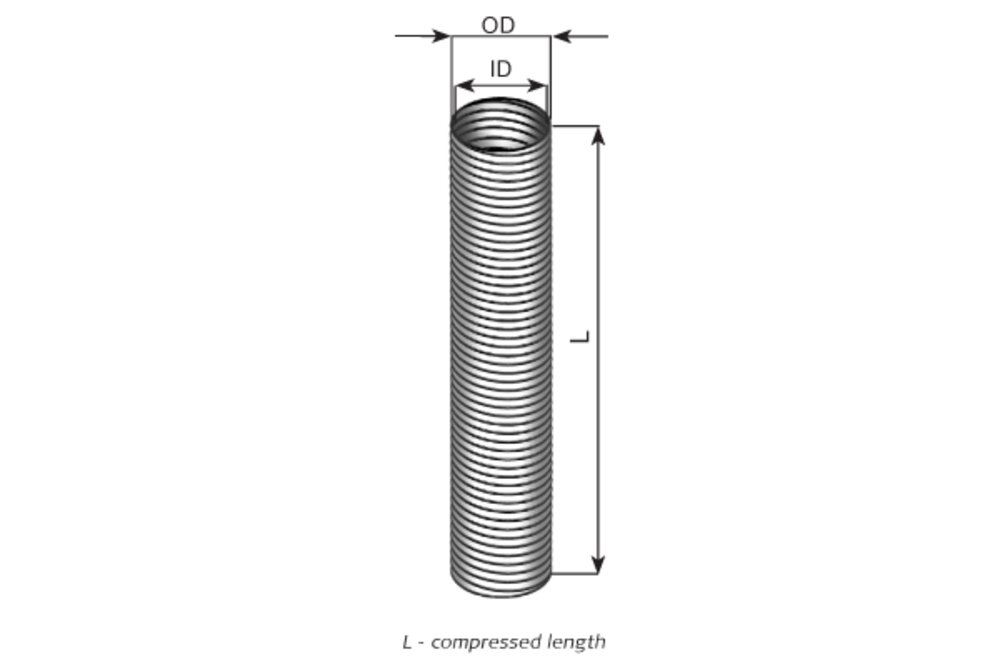

Compressed length1000
MaterialZinc Coated
