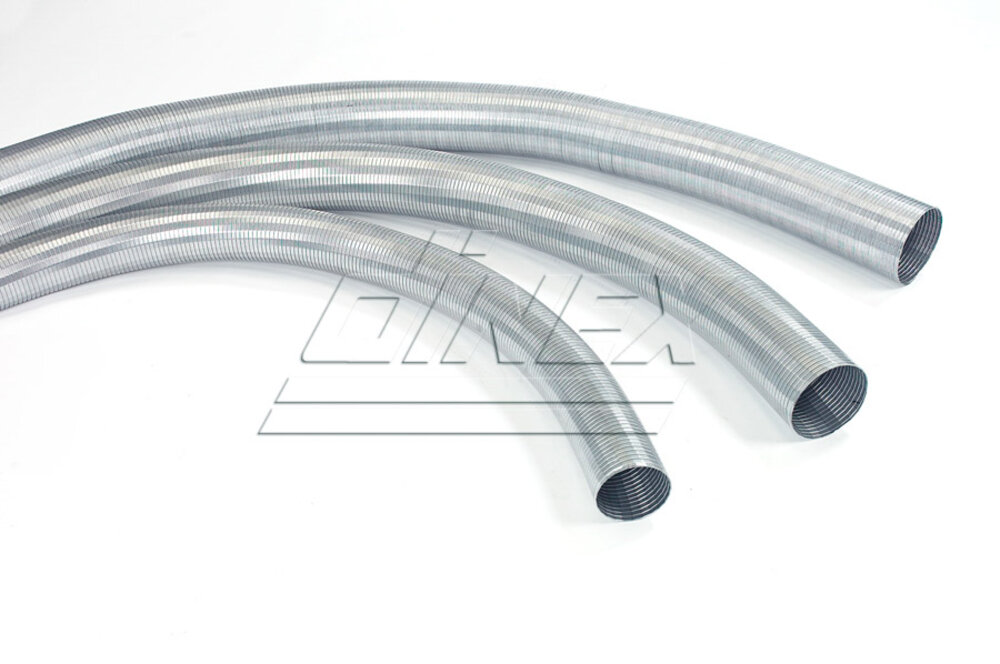

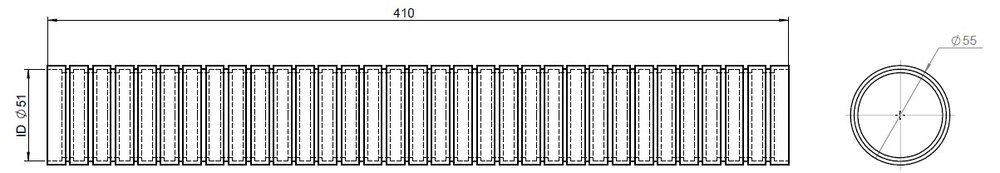

Flex Pipe, D2S, Ø=51 / L=410, SS

D2S Round Double Interlocked Profile


Leakage Rate: 15.0 L min-1dm-2 @0.15bar

Flexibility/Force: 60-300 N (± 15mm from mid position)

Axial Extension : > = 20% (>= 60mm)

Maximum Torsion: 2˚ (@ compressed length of 300mm)

Dinex no.87151
EAN5700760103618
Outer diameter [mm]55.00
Inner diameter [mm]51.00
MaterialStainless Steel
Net weight [kg]0.65
Length [mm]420.00
Height [mm]50.00
Width [mm]50.00
