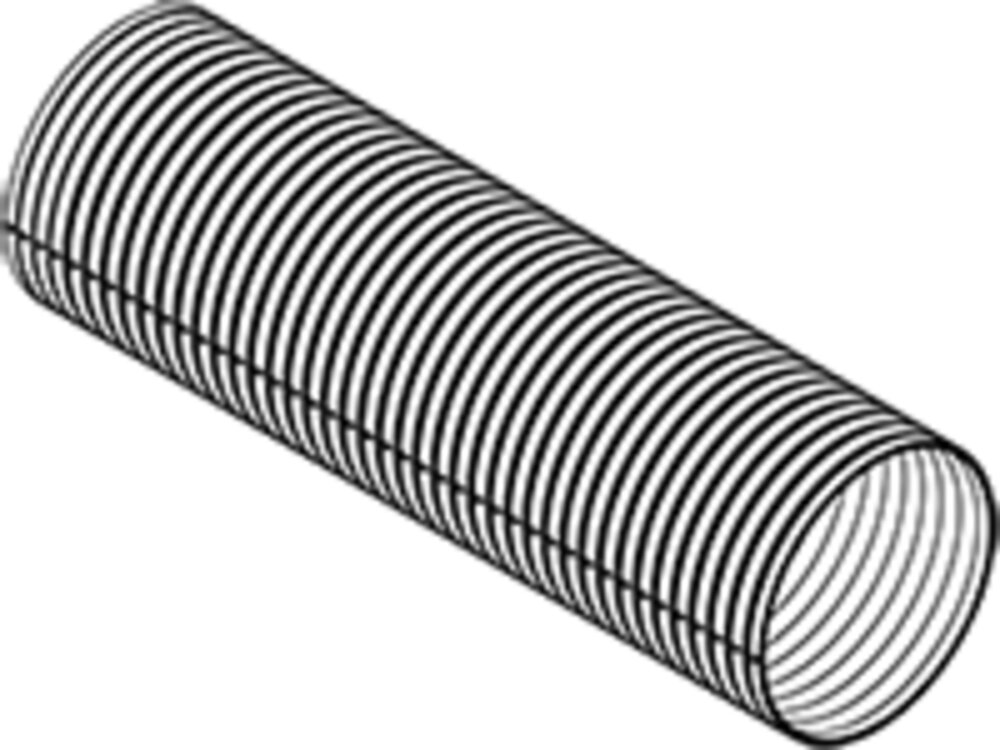

Flex Pipe, D2S+, Ø=89.9/ L=260, SS

D2S+ Round Double Interlocked Profile


Leakage Rate: 9.0 L min-1dm-2 @0.30bar

Flexibility/Force: 60-250 N (±23mm from mid position)

Axial Extension: > = 30% (> = 90mm)

Maximum Torsion: 5˚ (@ compressed length of 300mm)

Dinex no.95188
EAN5700760335026
Length [mm]260.00
Diameter [mm]93.90
Height [mm]94.00
Width [mm]94.00
Net weight [kg]0.62
Compressed length260
Extended Length338
Inner diameter [mm]89.90
Installation Length300
MaterialStainless Steel
Outer diameter [mm]93.30
