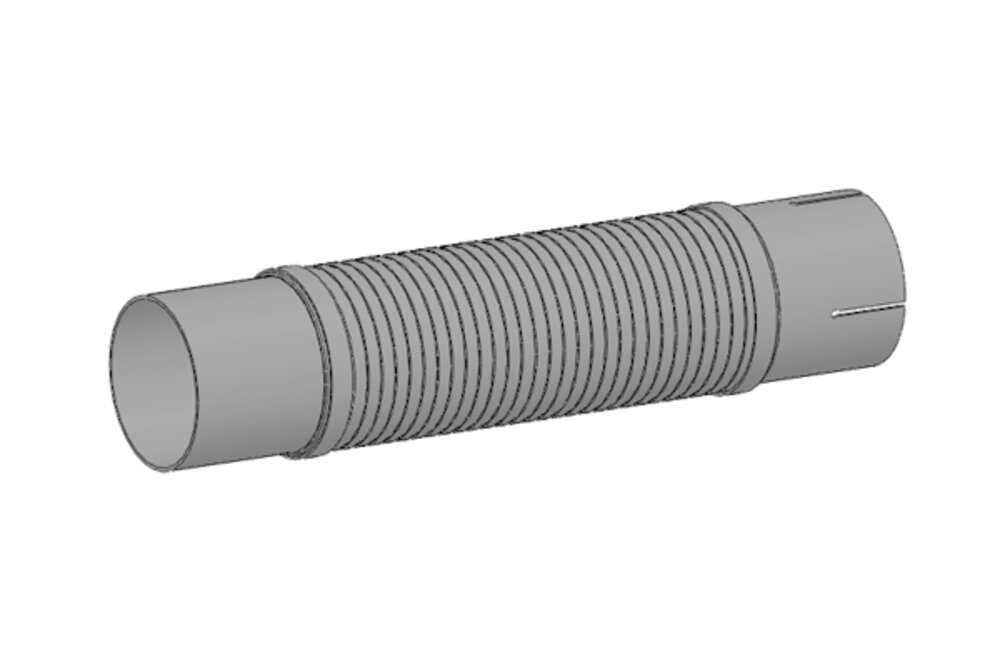

Flex Pipe, Mercedes, D2S+, Ø=77 / L=347, ALU/SS

D2S+ Round Double Interlocked Profile


Leakage Rate: 9.0 L min-1dm-2 @0.30bar

Flexibility/Force: 60-250 N (±23mm from mid position)

Axial Extension: > = 30% (> = 90mm)

Maximum Torsion: 5˚ (@ compressed length of 300mm)

Dinex no.53162
OE no.673.490.0265
Alternative product54226
EAN5700760062137
Outer diameter [mm]71.50
Inner diameter [mm]77.00
Net weight [kg]1.00
MaterialAluminized / Stainless Steel
Height [mm]85.00
Width [mm]85.00
Length [mm]345.00
