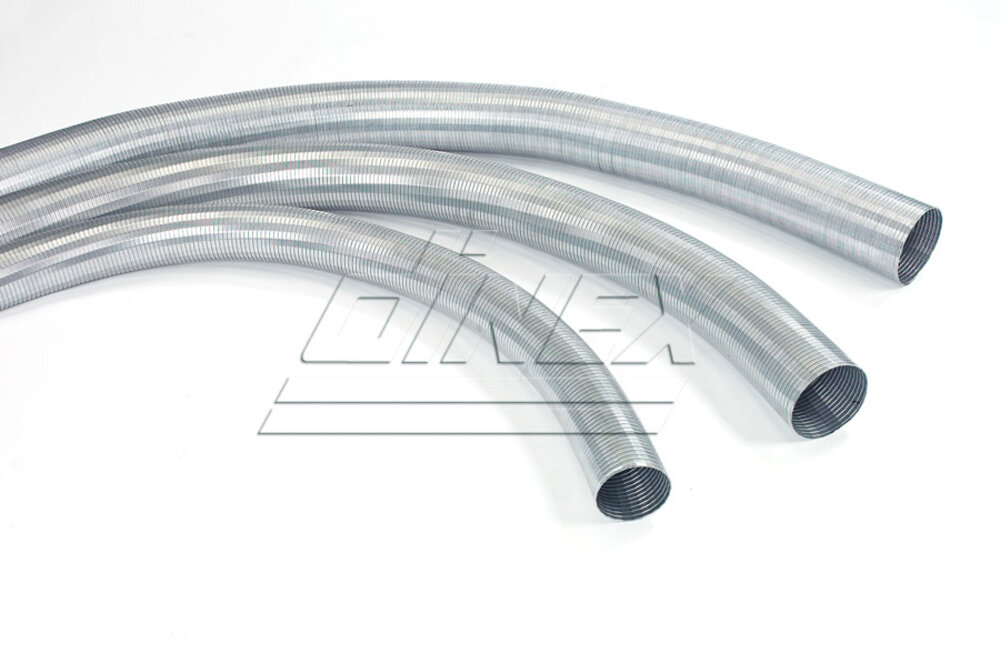

Flex Pipe, Volvo, D2S+, Ø=102.7 / L=542, SS

D2S+ Round Double Interlocked Profile


Leakage Rate: 9.0 L min-1dm-2 @0.30bar

Flexibility/Force: 60-250 N (±23mm from mid position)

Axial Extension: > = 30% (> = 90mm)

Maximum Torsion: 5˚ (@ compressed length of 300mm)

Dinex no.80183
OE no.1585679, 20442231
EAN5700760082883
Outer diameter [mm]107.00
MaterialStainless Steel
Inner diameter [mm]103.00
Net weight [kg]1.91

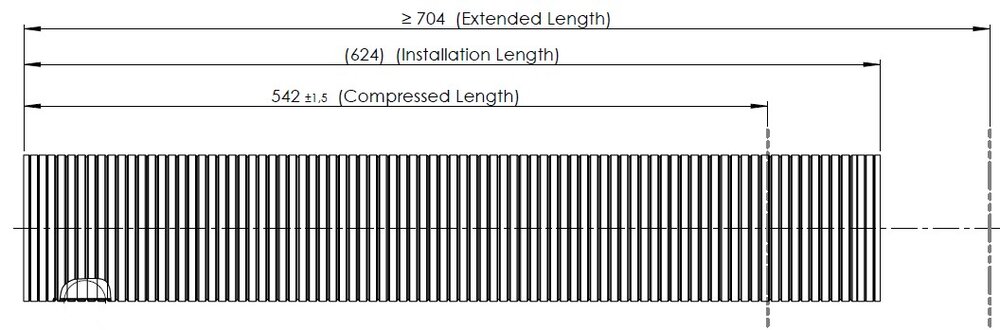

Extended Length704
Installation Length624
