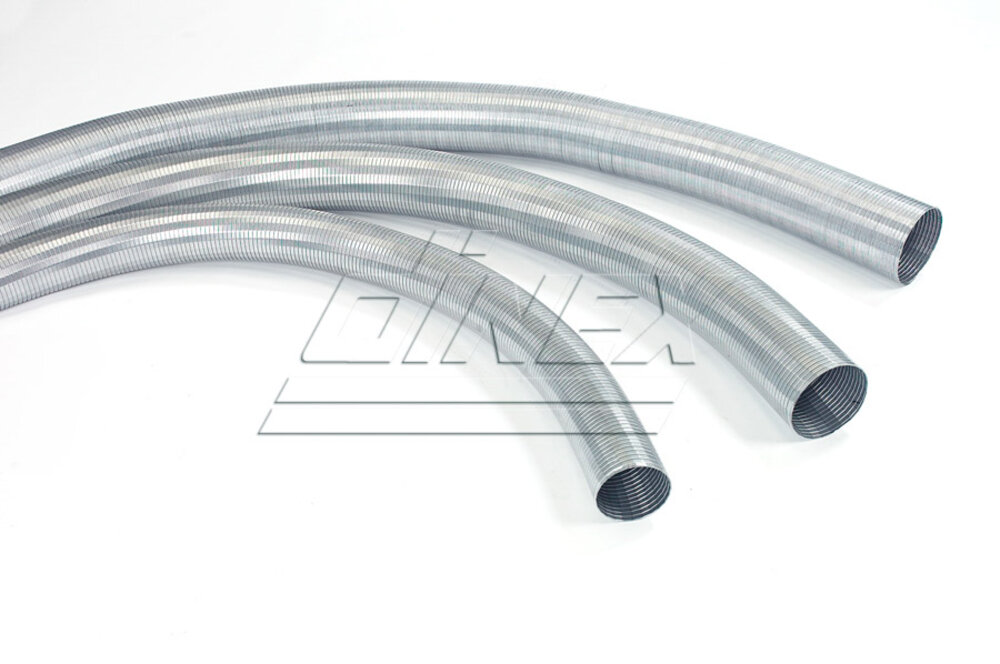

Flex Pipe, Volvo, D2S+, Ø=115.5 / L=500, SS

D2S+ Round Double Interlocked Profile


Leakage Rate: 9.0 L min-1dm-2 @0.30bar

Flexibility/Force: 60-250 N (±23mm from mid position)

Axial Extension: > = 30% (> = 90mm)

Maximum Torsion: 5˚ (@ compressed length of 300mm)

Dinex no.80655
OE no.1078115, 1609348, 20442242
EAN5700760085938
MaterialStainless Steel
Net weight [kg]1.83

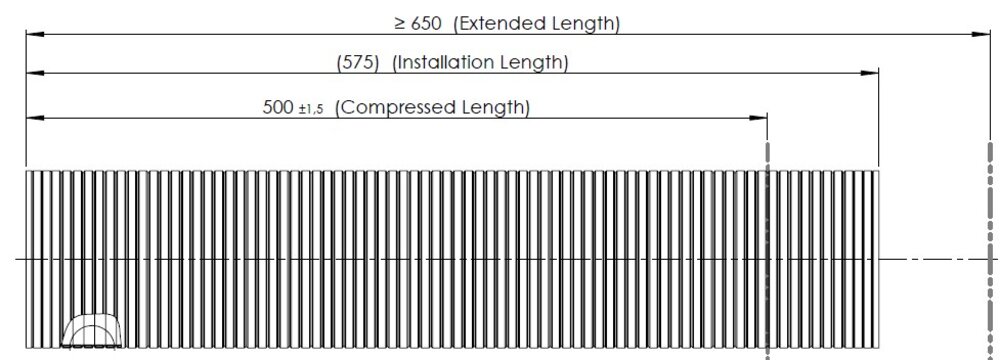

Extended Length650
Inner diameter [mm]115.00
Installation Length575
Outer diameter [mm]119.00
