Flex Pipe, Volvo, D2S+, Ø=89.9 / L=365, SS

D2S+ Round Double Interlocked Profile


Leakage Rate: 9.0 L min-1dm-2 @0.30bar

Flexibility/Force: 60-250 N (±23mm from mid position)

Axial Extension: > = 30% (> = 90mm)

Maximum Torsion: 5˚ (@ compressed length of 300mm)

Dinex no.80157
OE no.1588638, 1608108, 20422024, 9715
Emission normEuro 1
EAN5700760082654
Length [mm]390.00
MaterialStainless Steel
Outer diameter [mm]94.00
Inner diameter [mm]90.00
Net weight [kg]1.13
Height [mm]93.00
Width [mm]93.00

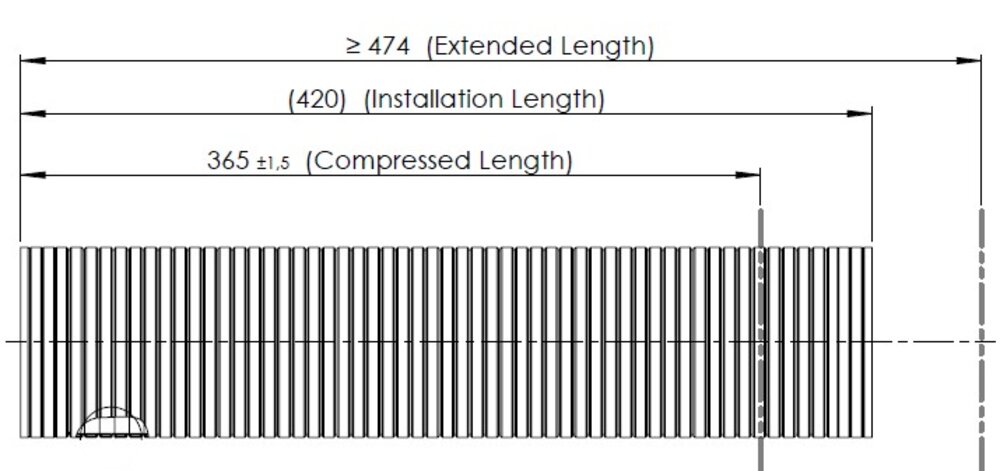

Extended Length474
Installation Length420
Exhaust emission normEuro 1
